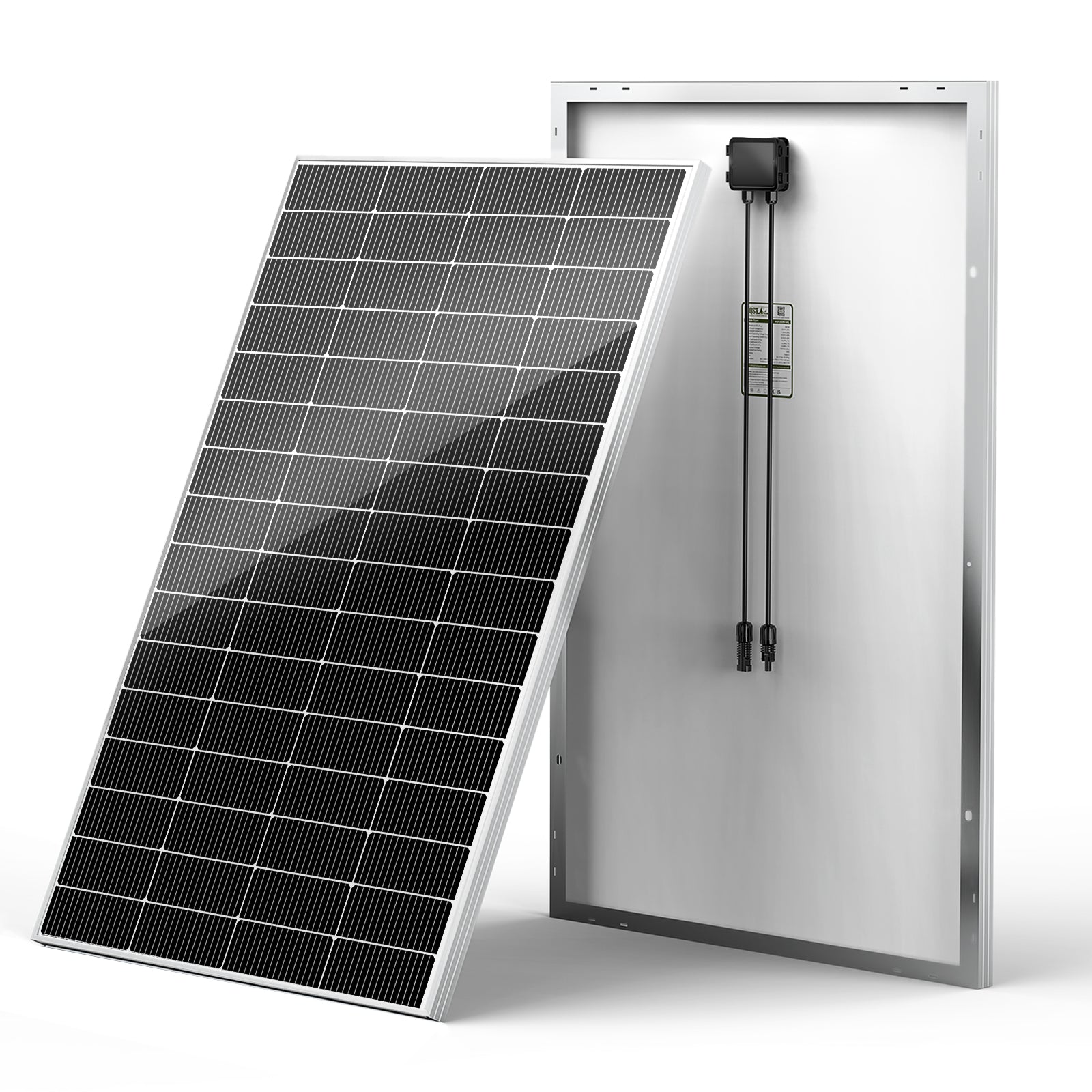

The HQST Compact N-Type 200W is a 200-watt n-type topcon option best suited to tight ground-mount footprints. 13% smaller footprint at 200W.
Overview
The HQST 200W N-Type is a high-efficiency panel built to be smaller and lighter than a conventional 200W module — about 13% more compact and 14.5% lighter — which matters when roof space and load budget are both tight.
It reaches roughly 25.4% output efficiency, carries an IP65-rated junction box against water and dust, and uses a durable frame suited to RVs, vans, and off-grid roofs.
Features & real-world use

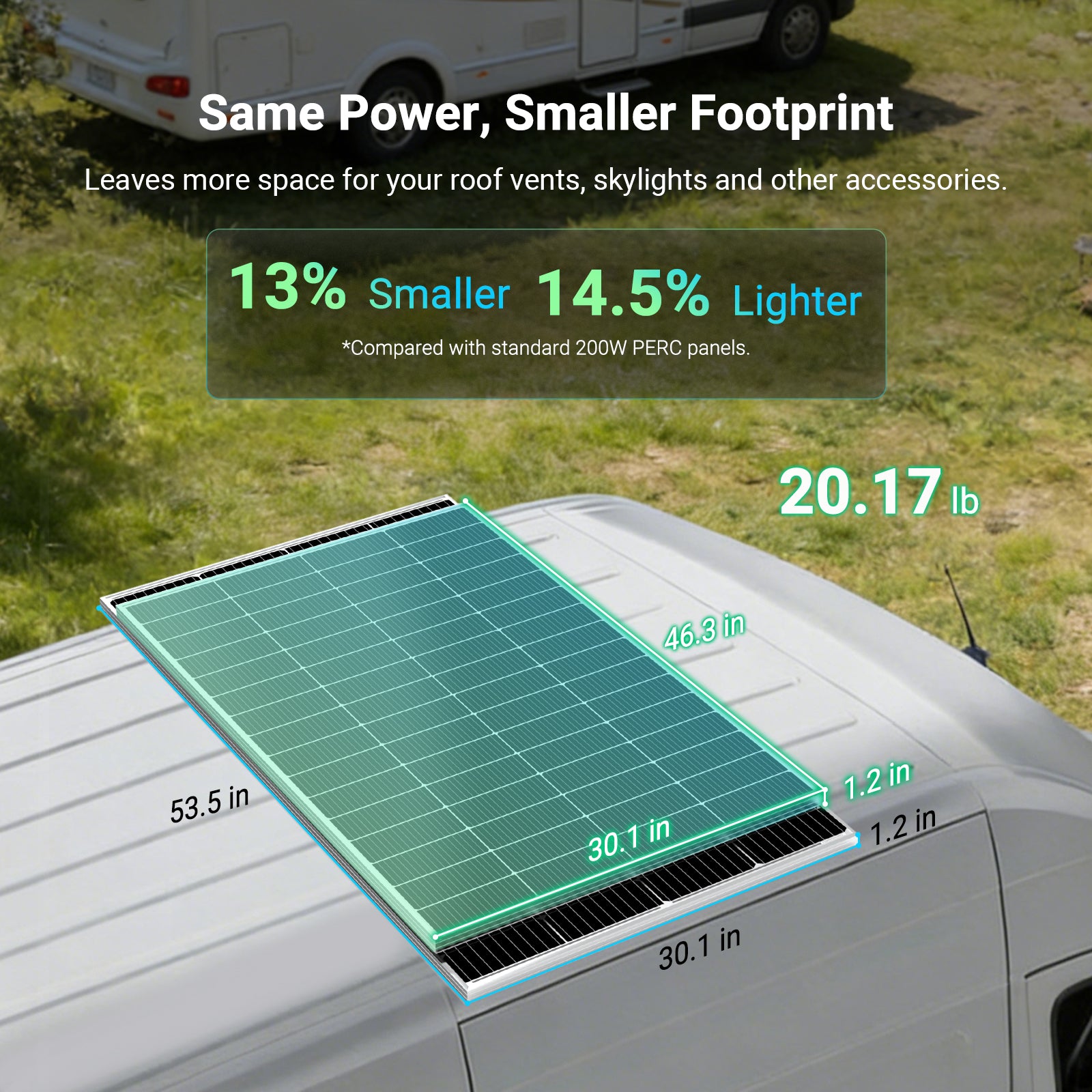

Same power, smaller footprint
About 13% smaller and 14.5% lighter than a standard 200W PERC panel at 20.17 lb, leaving more room for vents, skylights, and other roof accessories.

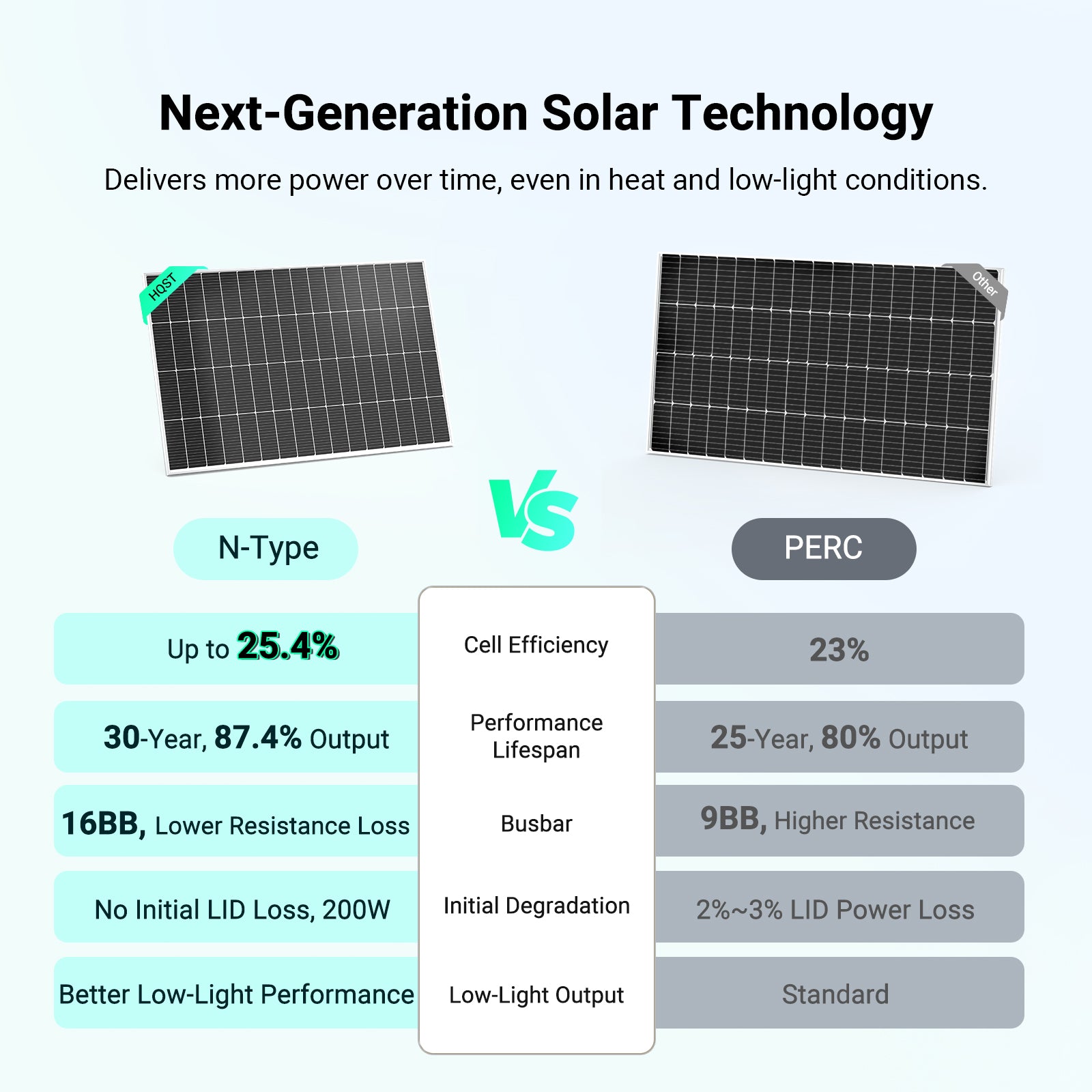

Next-generation N-Type cells
Up to 25.4% efficiency, a 30-year 87.4% output warranty, no initial LID loss, and better low-light performance than PERC.

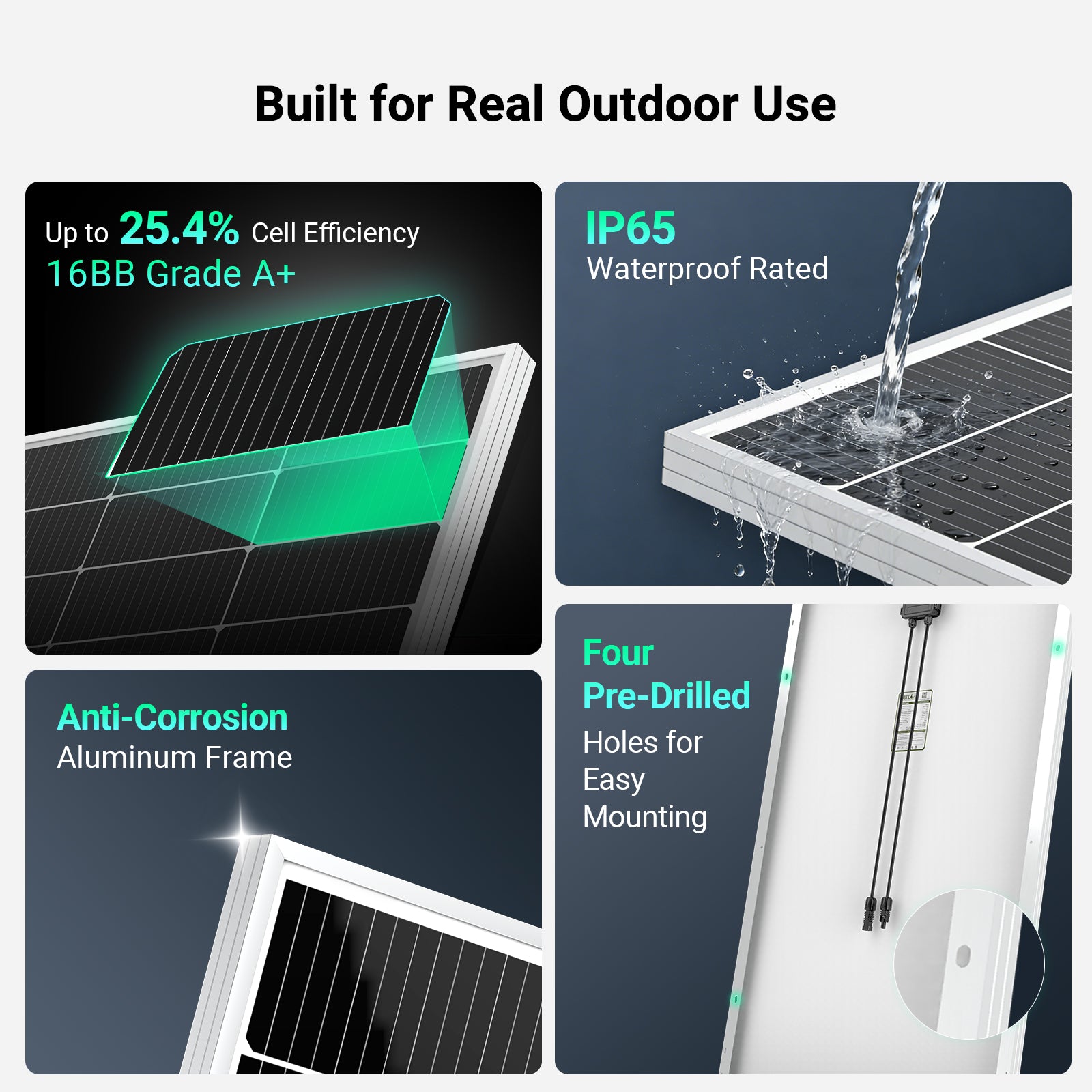

Built for real outdoor use
16BB Grade A+ cells, an IP65 waterproof rating, an anti-corrosion aluminum frame, and four pre-drilled holes for easy mounting.

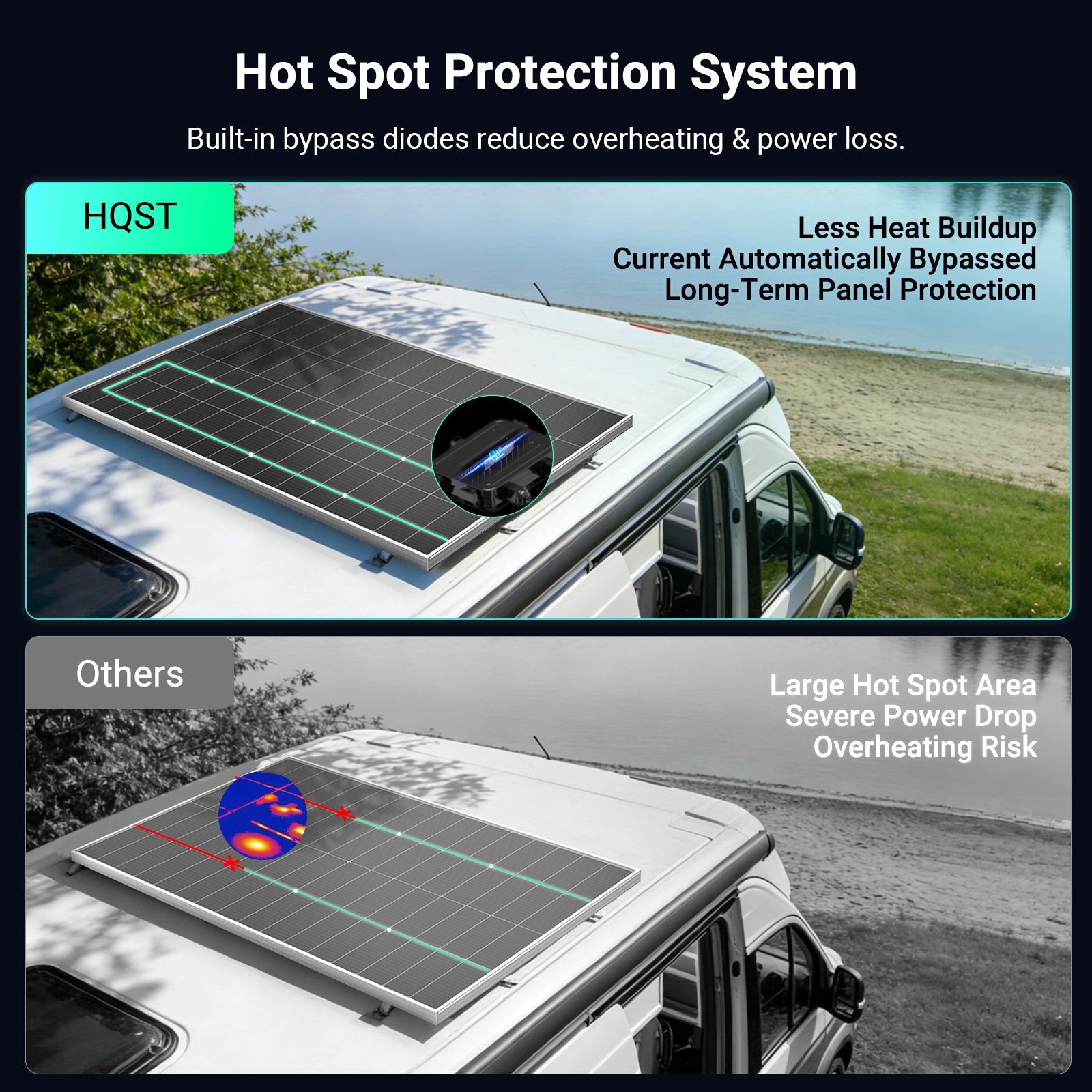

Hot-spot protection built in
Bypass diodes route around a shaded or damaged cell, cutting heat buildup and the severe power drop that hits cheaper panels.

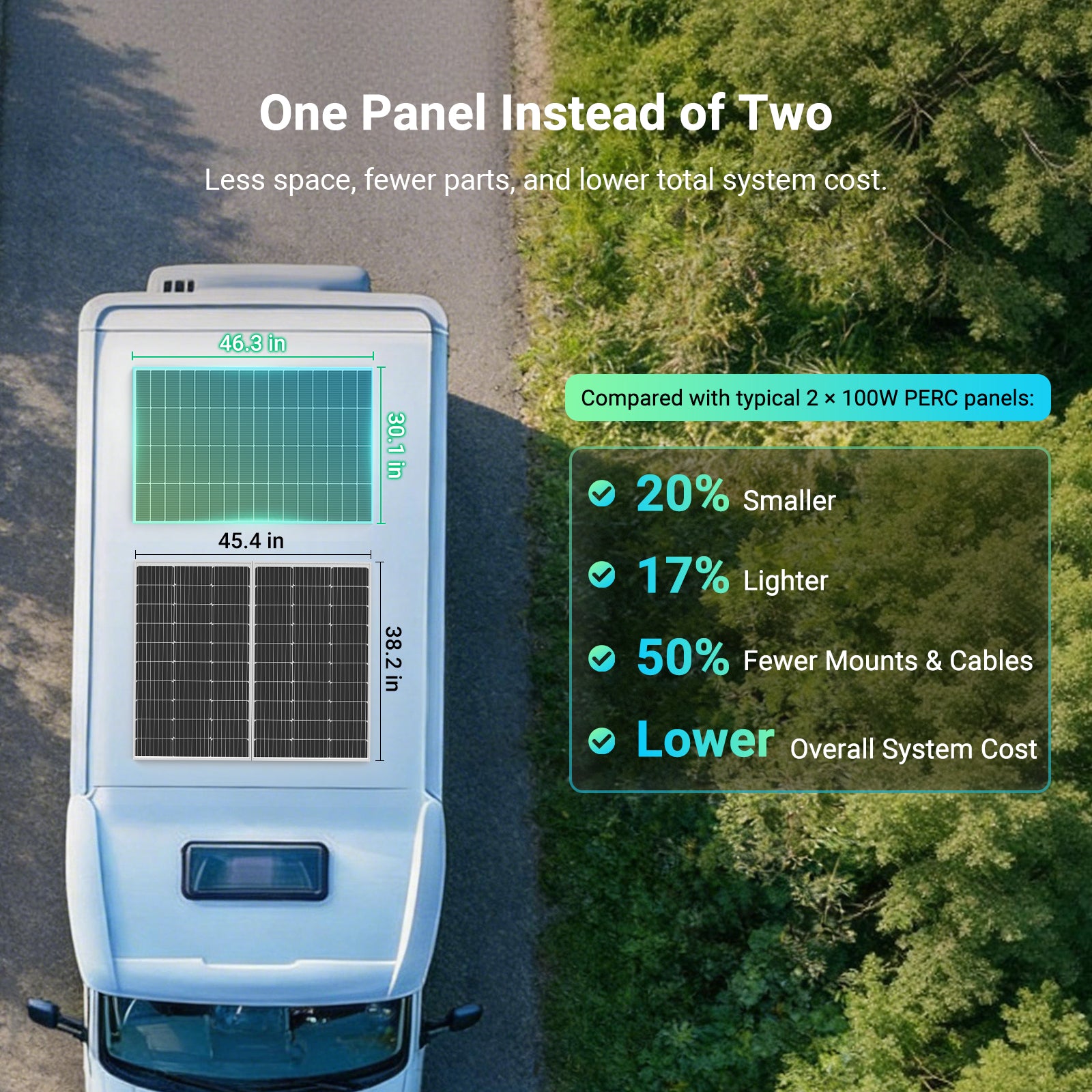

One panel instead of two
A single 200W panel replaces a pair of 100W modules — about 20% smaller, 17% lighter, 50% fewer mounts and cables, and a lower total system cost.
Invest once, power for decades
A 30-year performance warranty (87.4% output) and 5-year product warranty back the panel.
Built for any roof, deck, or vehicle
A compact, lightweight framed panel that mounts through four pre-drilled holes — small and light enough for a crowded roof, and rugged enough for fixed off-grid use.
RV & trailer roofs
Bolt through the pre-drilled holes onto a fiberglass or metal roof; its small footprint frees up space for vents and fans.
Vans & campers
About 14.5% lighter than a standard 200W panel, easing the load on a van roof.
Cabins & sheds
A durable framed array for an off-grid outbuilding, expandable over time.
Ground racks
Tilt-mount on a rack or A-frame for a homestead or seasonal setup.
Boats with rail mounts
Clamps to rails or an arch where the frame is well supported.
Carports & patio covers
Bolt to a carport or pergola for a fixed, weatherproof array.
Key features
- N-Type cells, ~25.4% output efficiency
- ~13% smaller and ~14.5% lighter than a standard 200W panel
- IP65 water- and dust-resistant junction box
- Durable frame for RV, van, and off-grid use
Specifications
| Brand | HQST |
|---|---|
| Category | Rigid Solar Panels |
| Power output | 200 W |
| Cell technology | N-Type TOPCon |
| Efficiency | 25.4% |
| Weight | 18.0 lbs |
| Price | $119.99 |
| Best for | Tight ground-mount footprints |
| Max power (STC) | 200W |
| Cell efficiency | up to 25.4% |
| Open-circuit voltage (Voc) | 22.4V |
| Short-circuit current (Isc) | 11.04A |
| Optimum operating voltage (Vmp) | 19.2V |
| Optimum operating current (Imp) | 10.50A |
| Max system voltage | 600V DC |
| Max series fuse rating | 20A |
| Junction box | IP65 |
| Weight | 20.17 lbs |
| Dimensions | 30.1 × 46.3 × 1.18 in |
Roof-load fit for manufactured homes
Rigid glass-and-aluminum modules add roughly 3.3–4 psf installed. On a manufactured roof (often only 10–15 psf dead-load capacity) this is best mounted on a ground rack, carport, or accessory structure rather than the home's roof.
How a rigid module's weight stacks up against lightweight flexible panels — the key roof-load factor:
Pros & cons
👍 Pros
- High efficiency (25.4%) packs more watts into limited roof space
- Premium N-Type/TOPCon cells with better low-light and heat performance
- Budget-friendly price
👎 Cons
- Heavy rigid glass — concentrates point-loads; not ideal for a manufactured roof
Is the HQST Compact N-Type 200W right for your mobile home?
Choose this panel if your priority is tight ground-mount footprints. As a rigid module, it delivers the most watts per dollar when mounted on a ground rack, carport, or accessory structure rather than the home's thin roof deck. For full sizing math, HUD roof-load zones, and permitting requirements, read our complete buyer's guide.
