The BougeRV 200W Flexible Kit is a 200-watt monocrystalline (semi-flexible) option best suited to semi-flexible monocrystalline configuration. Curved-roof friendly semi-flexible kit.
Overview
The 200W Arch 2.0 kit is a curved-roof-friendly starter system: a single fiberglass flexible panel that conforms to rounded surfaces, paired with a smart MPPT controller, LiFePO4 storage, and a 1,000W inverter.
It suits a van, small RV, or cabin where weight and a low profile matter more than maximum output, and it can be expanded later by adding matched panels.
Features & real-world use

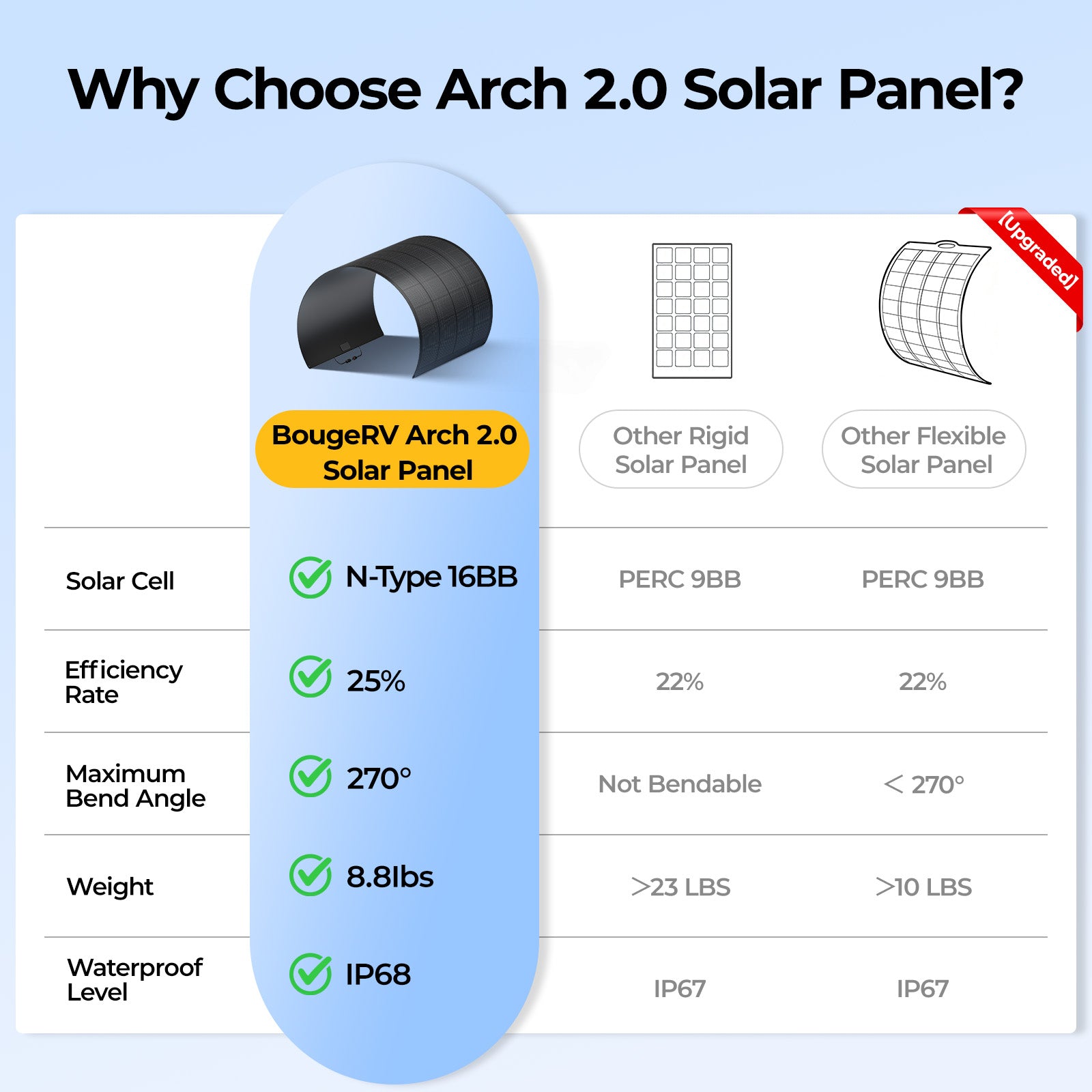

Why the Arch 2.0 panel
N-Type 16BB cells at ~25% efficiency, a 270° max bend, ~8.8 lb weight, and IP68 sealing — ahead of a rigid or a lesser flexible panel on every count.

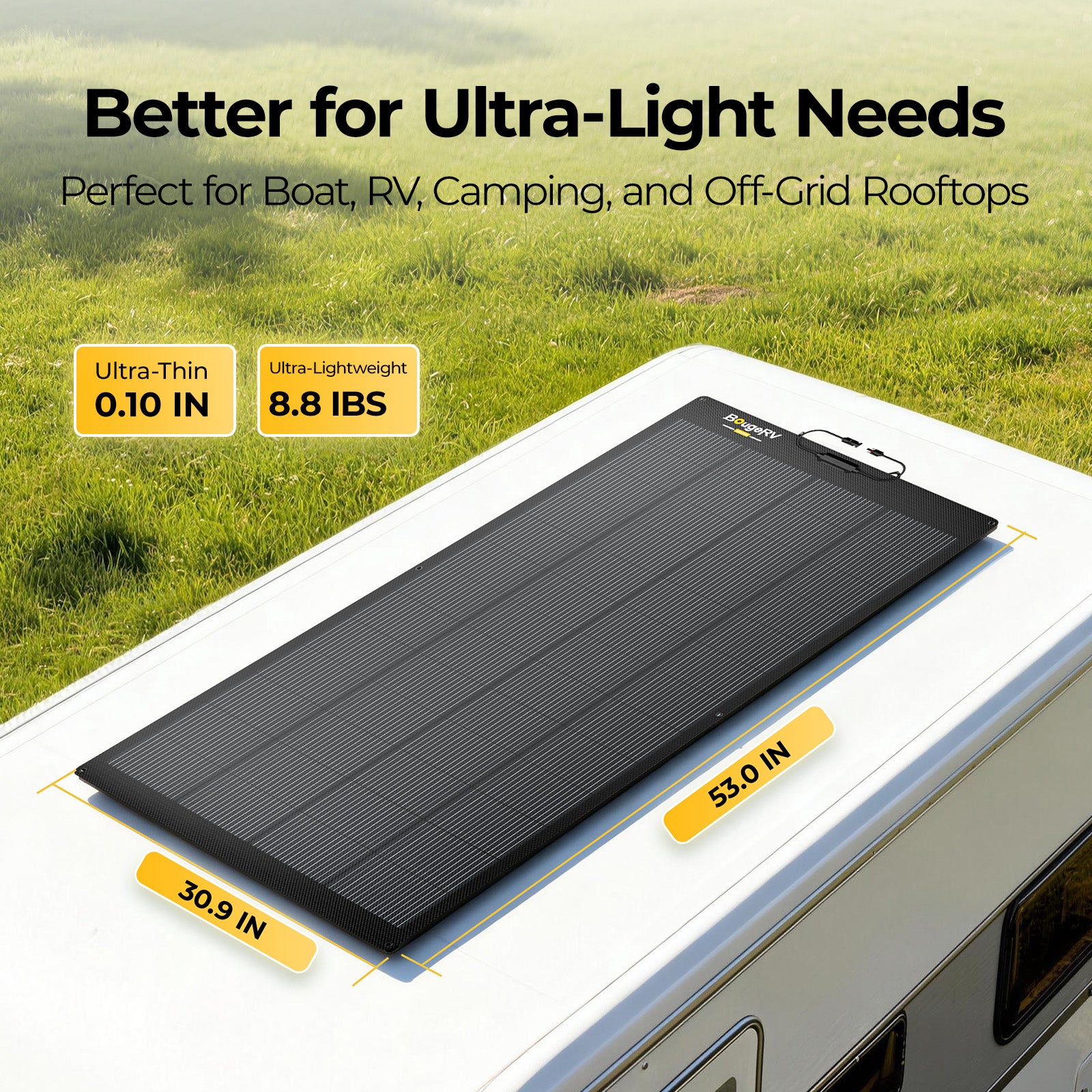

Built for ultra-light installs
About 0.10 in thick and 8.8 lb (53 × 30.9 in), so it sits nearly flush on a boat, RV, camper, or off-grid rooftop without a rack.

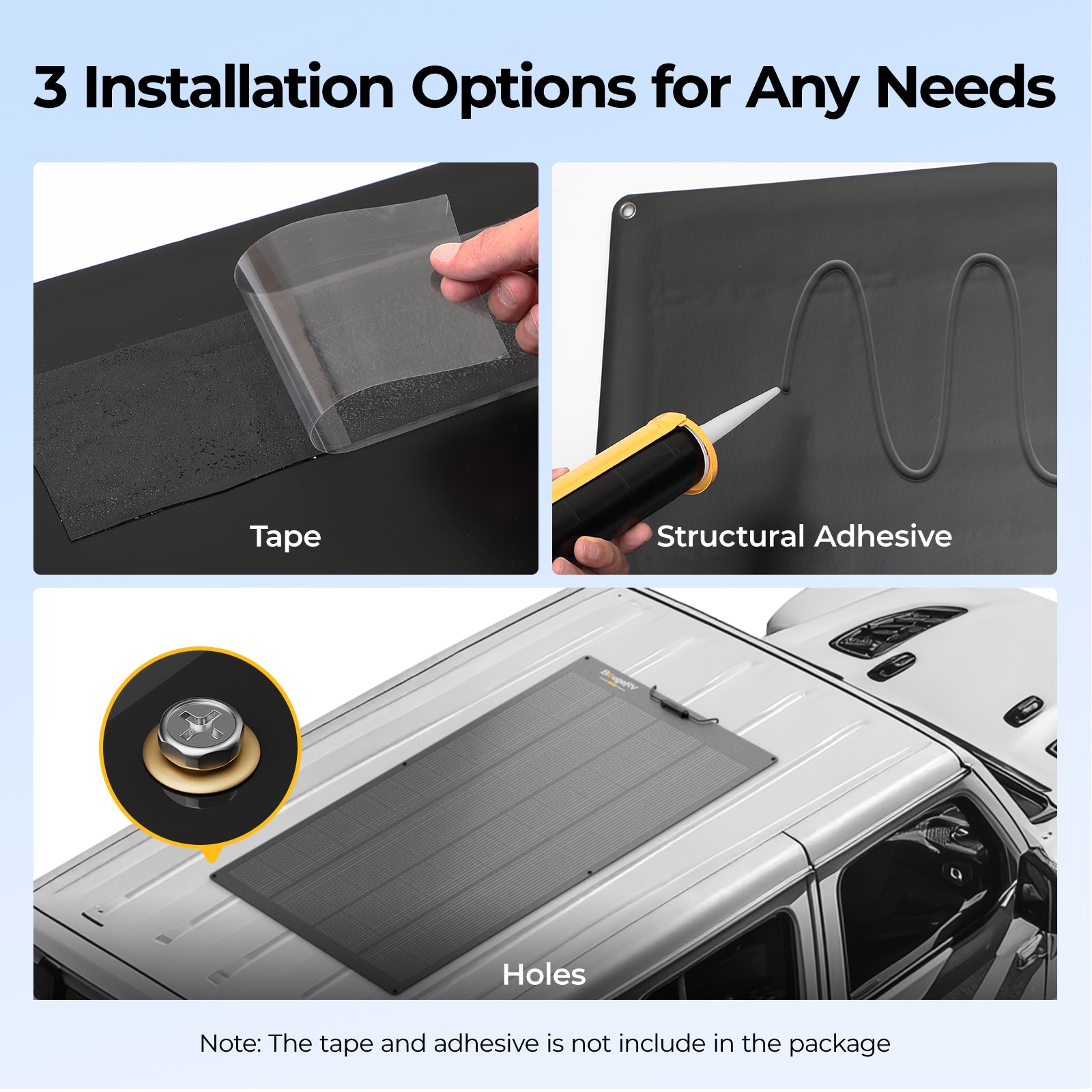

Three ways to mount it
Fix the flexible panel with tape, structural adhesive, or the pre-punched holes — whatever suits your roof.
Safe and durable
A dual-layer fiberglass protective film with IP68 waterproofing and 2400Pa wind / 5400Pa snow ratings keeps it working through real weather.

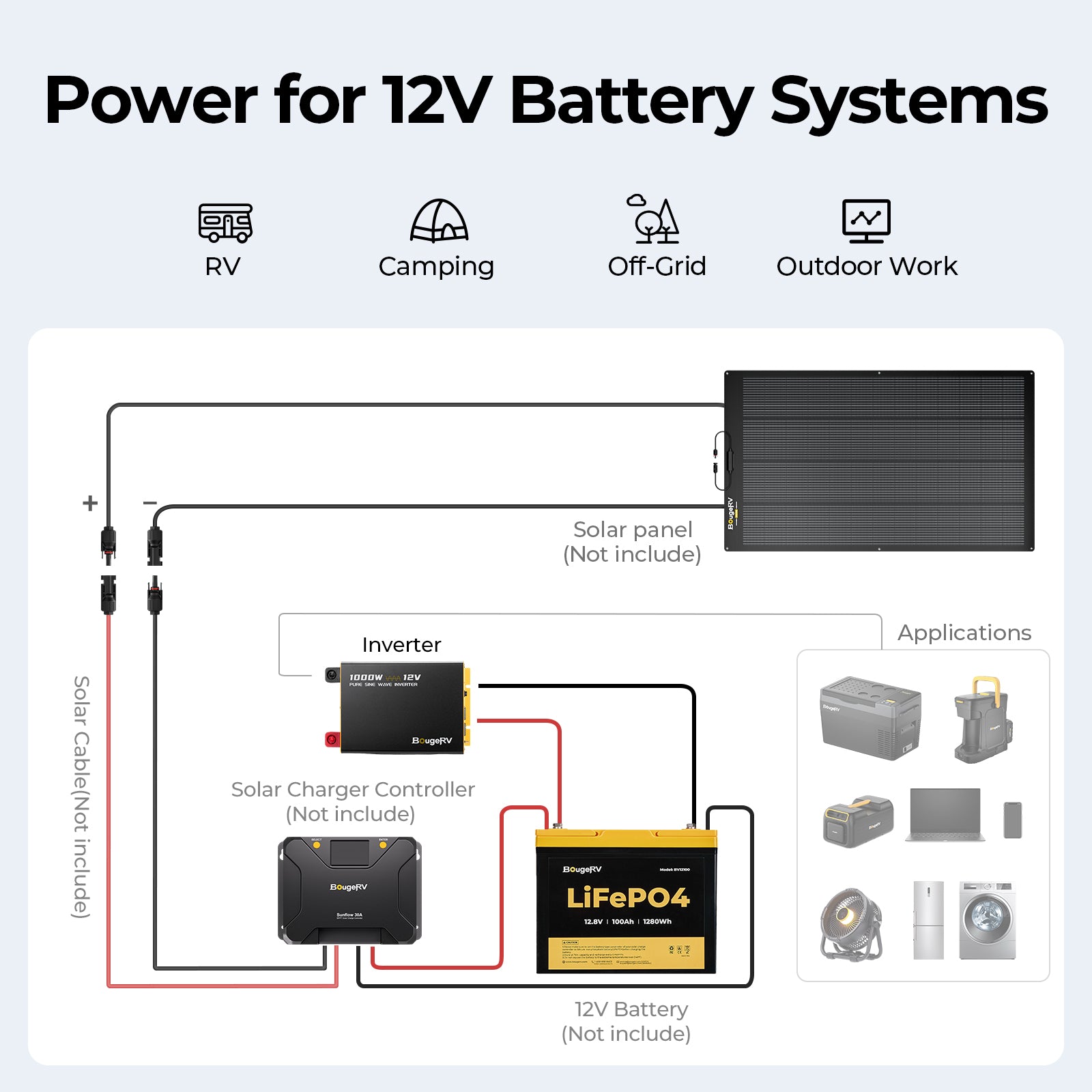

A complete 12V power path
Panel to charge controller to LiFePO4 battery to inverter — the kit covers every link for RV, camping, off-grid, and outdoor-work use.

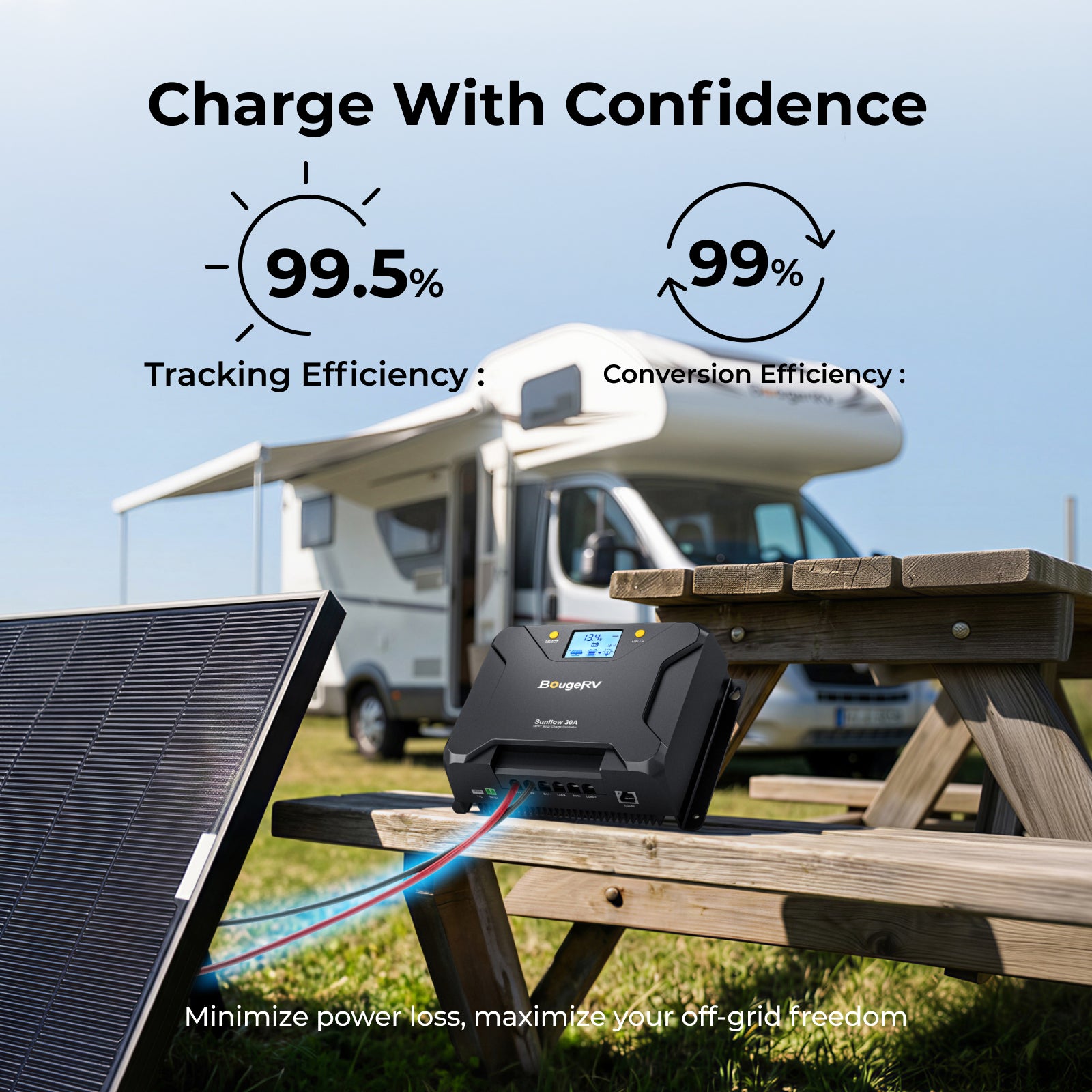

MPPT that squeezes out every watt
The 30A MPPT controller tracks at about 99.5% and converts at ~99%, minimizing loss between panel and battery.

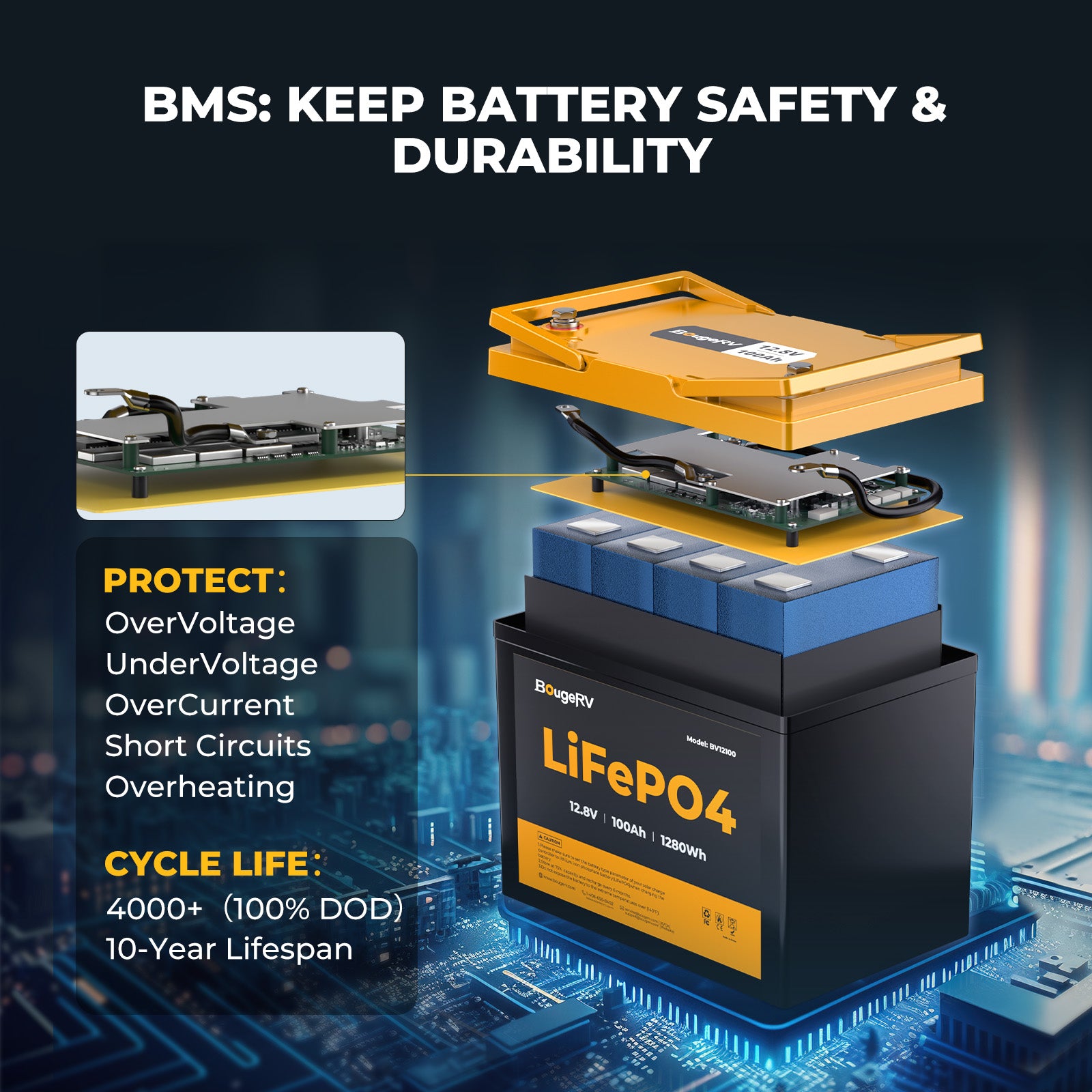

Protected by a smart BMS
The LiFePO4 battery's management system guards against over-voltage, over-current, short circuits, and overheating, backing a 10-year, 4,000+ cycle life.

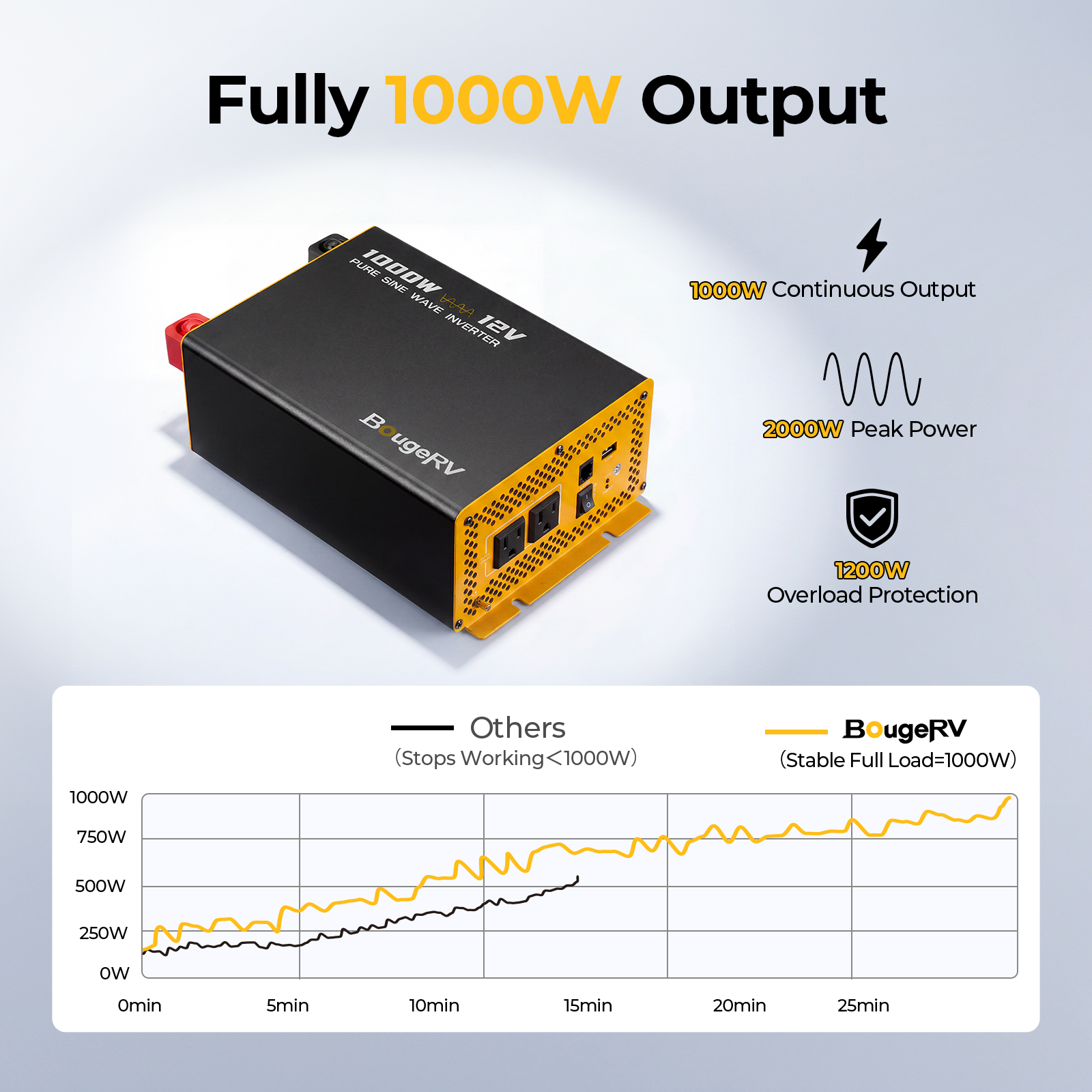

1,000W of clean AC
The included pure sine wave inverter delivers 1,000W continuous (2,000W peak) for lighting, electronics, and small appliances.
Built for any roof, deck, or vehicle
The Arch 2.0's fiberglass panel bends to follow a curved roof, so this compact system mounts low-profile where a rigid panel can't — with the controller, battery, and 1,000W inverter making it a plug-and-play off-grid setup.
RV & trailer roofs
The curved panel follows the crown of a fiberglass or aluminum roof and sits nearly flush.
Camper vans & conversions
Low-profile and light for a high-top or pop-top roof, with the power system inside.
Boats & marine decks
Bends to a cabin top or deck and stands up to sun and spray.
Overland & trailers
Slim enough to keep a low profile on a moving rig and tough enough for trail vibration.
Mobile & manufactured homes
A single light panel stays within a thin HUD-code roof's dead-load budget while the LiFePO4 battery runs small loads.
Cabins, sheds & tiny homes
A compact off-grid starter system for an outbuilding.

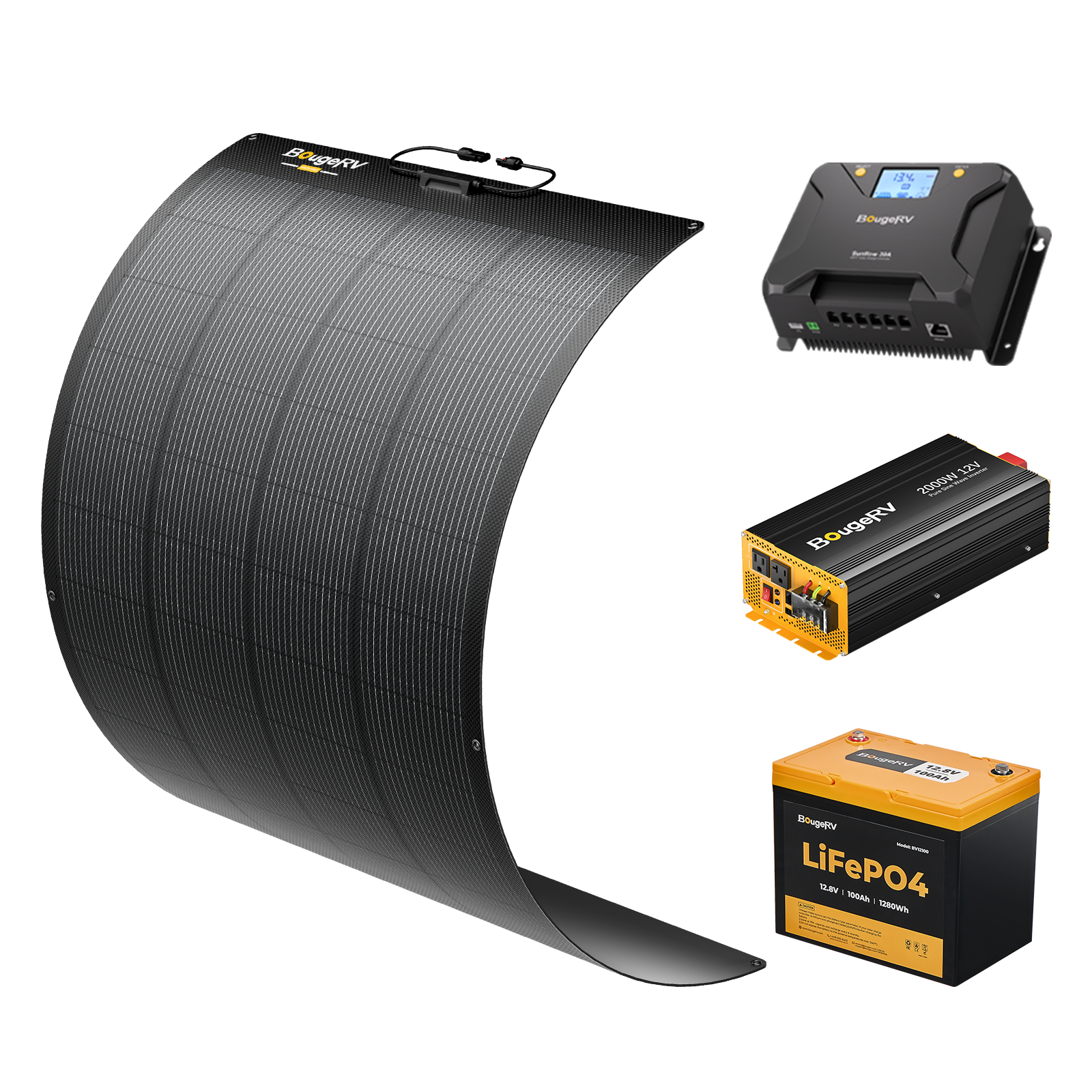

What's in the box
- 1 × Arch 2.0 200W fiberglass curved flexible panel
- 1 × Sunflow 30A MPPT charge controller (12V/24V)
- 1 × 12V 100Ah LiFePO4 battery
- 1 × 1,000W 12V pure sine wave inverter (Bluetooth)
Specifications
| Brand | BougeRV |
|---|---|
| Category | DIY Solar Kits |
| Power output | 200 W |
| Cell technology | Monocrystalline (semi-flexible) |
| Price | $749.99 |
| Best for | Semi-flexible monocrystalline configuration |
| Charge Controller | Included |
| Inverter | Not included |
| Panel max power (STC) | 200W ±5% |
| Cell type | N-Type 16BB monocrystalline |
| Cell efficiency | 25% |
| Max power voltage (Vmp) | 24V ±5% |
| Max power current (Imp) | 8.34A ±5% |
| Open-circuit voltage (Voc) | 28V ±5% |
| Short-circuit current (Isc) | 8.75A ±5% |
| Panel weight | 8.8 lbs |
| Panel dimensions | 53.0 × 30.9 × 0.1 in |
| Max bend angle | 270° |
| Waterproof rating | IP68 |
| Inverter | 1,000W continuous / 2,000W peak pure sine wave |
Roof-load fit for manufactured homes
Semi-flexible panels add roughly 0.5–1 psf and mount low-profile, well within the 10–15 psf dead-load budget of most manufactured roofs.
Charge-controller type decides how much of your panels' output actually reaches the battery:
Pros & cons
👍 Pros
- Lightweight semi-flexible build conforms to curved roofs
- Curved-roof friendly semi-flexible kit
👎 Cons
- Verify roof load capacity and mounting before installation
Is the BougeRV 200W Flexible Kit right for your mobile home?
Choose this panel if your priority is semi-flexible monocrystalline configuration. Because it is a flexible, low-profile panel, it can usually go straight onto a manufactured roof without exceeding the 10–15 psf dead-load limit. For full sizing math, HUD roof-load zones, and permitting requirements, read our complete buyer's guide.
Reviews
No reviews yet. Bought this panel? Be the first to review it — your experience helps other mobile-home owners choose.
